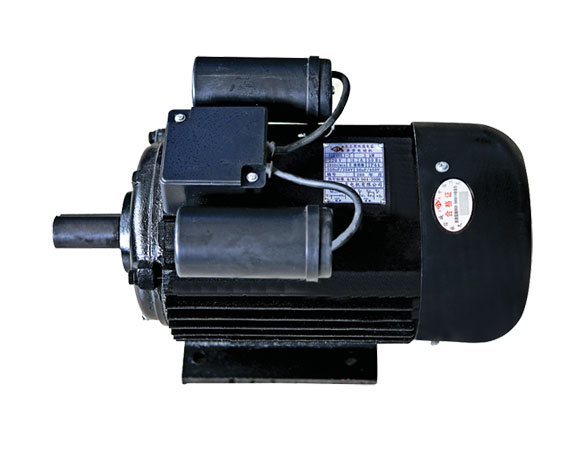

YLM Series Two-value Capacitor Asynchronous Motor For Wood-working Machinery
YLM Series Two-value Capacitor Asynchronous Motor For Wood-working Machinery
Summarization:
YLM series motor is full-close rat-cage single-phase two-value capacitor asynchronous motor self-cooled by fan. The motor is manufactured for small multifunctional wood working machine. The series motor is of the characteristic of large starting torque, strong ability of over loading, low temperature raise, small vibrancy, low yawp, great reliability, easy maintenance.
YLM series motor is widely used to varilous wood working machine.


Working condition:
The motor can work on the rated power continuously under the following condition:the altitude is no more than 1000m and the environmental air temperature is no more than +40℃.
Rated Volt:220V
Rated Frequency:50Hz
Working System:S1
Insulation Grade:E或B(E OR B)
Protection Grade:IP44
Cooling Type:IC 411

Technical data

Type Rated power
(KW)
Rated Volt
(V)
Rated current
(V)
Rated speed
(r/min)
Efficient
(%)
Power factor
(cos¢)
Locked current
(A)
Locked-rotor torque/Rated torque Maximal torque/Rated torque Yawp dB(A)
Synchronous speed 3000r/min 2pole
YLM7112 0.37 220 2.7 2800 67 0.93 16 2.0 1.8 72
YLM7122 0.55 3.84 2800 70 0.93 21 2.0 72
YLM8012 0.75 5.04 2800 72 0.94 29 2.1 75
YLM8022 1.1 7.02 2800 75 0.95 40 2.1 75
YLM90S-2 1.5 9.44 2800 76 0.95 55 2.0 78
YLM90L-2 2.2 13.7 2800 77 0.95 80 2.0 78
YLM90L3-2 2.7 15 2800 78 0.95 110 1.9 78
YLM90L4-2 3 18 2800 79 0.95 125 1.9 83
YLM100L-2 3 18.2 2800 79 0.95 125 1.9 83
YLM100L2-2 3.7 20.5 2800 79 0.96 150 1.8 83
Synchronous speed 1500r/min 4pole
YLM7114 0.25 220 1.97 1400 62 0.93 12 2.0 1.8 67
YLM7124 0.37 2.78 1400 65 0.93 16 2.0 67
YLM8014 0.55 4 1400 68 0.93 21 2.1 70
YLM8024 0.75 5.16 1400 71 0.93 29 2.0 70
YLM90S-4 1.1 7.21 1400 73 0.95 40 2.0 73
YLM90L-4 1.5 9.57 1400 75 0.95 55 1.9 73
YLM90L2-4 2.2 13 1400 76 0.95 80 1.9 78
YLM100L-4 2.2 13.9 1400 76 0.95 80 1.9 78
YLM100L2-4 3 17.5 1400 77 0.95 125 1.9 78
YLM100L3-4 3.7 21.3 1400 78 0.96 150 1.8 80
